YC6K

6K G-drive diesel engine

① Electronic controlled high pressure common rail system.
② High power density and compact structure.
③ Meet Non-road National Ⅲ standard.

Series

Prime (kW)

Standby (kW)

Rated speed (r/min)

Type

Cylinders -bore x stroke(mm)

Displacement (L)

Aspiration

Fuel system

Speed adjustment

Fuel consumption g/(kW·h)

Emission standard

Dimension (L x W x H) mm

Net weight (kg)

Application genset

YC6K

320–400

340–440

1500

In line、4-stroke, 4-valve

6-129×155/165

12.16/12.94

Turbocharged & Intercooled

ECR

ECU

≤200

Non-road T3

1875×960×1375

1275

Prime: 320–400 kW
Standby: 340-440kW

50hz

YC6K520-D30

YC6K600-D30

YC6K660-D31

60hz

YC6K500-D32

YC6K570-D32

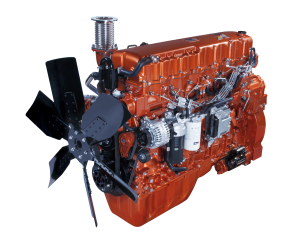

Yuchai YC6K Diesel Generator Engine (320–440 kW)

The Yuchai YC6K is a high power-density inline-6 diesel engine built for large industrial generator sets, rated from 320 to 400 kW prime power and 340 to 440 kW standby power at 1500 r/min.

The engine is turbocharged and intercooled and uses an electronically controlled high-pressure common rail fuel system. Its compact structure is designed to deliver high output while keeping the installation footprint and engine weight comparatively low for its power class.

The YC6K meets Non-Road National III (T3) emission standards and is suitable for demanding industrial and commercial generator applications.

Why Choose the Yuchai YC6K?

The YC6K combines several features designed for reliable high-output generator operation. Its electronically controlled high-pressure common rail fuel system provides precise fuel injection and supports efficient combustion and emissions control.

Its high power-density and compact structure allow the engine to deliver substantial power without requiring the larger footprint associated with some older-generation industrial diesel engines.

For operators already using other Yuchai YC6-series engines, the shared platform architecture can also simplify technician training, servicing and spare-parts management across a mixed fleet.

Applications

The Yuchai YC6K is suitable for demanding power-generation applications where reliable output and efficient use of installation space are important.

  • Large industrial facilities
  • Commercial complexes
  • Water treatment plants
  • Critical infrastructure
  • Industrial standby power
  • 300–400 kW generator sets

Yuchai YC6K Engine Specifications

Specification YC6K
Prime Power 320–400 kW
Standby Power 340–440 kW
Rated Speed 1500 r/min
Engine Type Inline, 4-stroke, 4-valve
Cylinders – Bore × Stroke 6 – 129×155 / 165 mm
Displacement 12.16 / 12.94 L
Aspiration Turbocharged & Intercooled
Fuel System ECR
Speed Adjustment ECU
Fuel Consumption ≤200 g/(kW·h)
Emission Standard Non-Road T3
Dimensions (L×W×H) 1875×960×1375 mm
Net Weight 1275 kg
Genset Prime Application 320–400 kW
Genset Standby Application 340–440 kW

50Hz vs 60Hz

The published YC6K specification lists a rated speed of 1500 r/min, which corresponds to a 50Hz configuration for a typical 4-pole generator system.

If you require a 60Hz Yuchai YC6K generator engine, contact Arrowad Trading to confirm whether the appropriate 60Hz sub-model is currently available for your project.

Arrowad Trading Support

Arrowad International Trading stocks genuine Yuchai YC6K engines and spare parts at its facility in Jebel Ali Free Zone, Dubai.

Arrowad supports customers across the UAE, GCC and Africa, providing regional supply, technical assistance and faster access to genuine replacement parts.

Frequently Asked Questions About the Yuchai YC6K

What is the Yuchai YC6K engine used for?

The Yuchai YC6K is designed for large industrial and commercial diesel generator sets in the 300–400 kW power range, particularly applications where high power density and a compact installation footprint are important.

What makes the YC6K a high power-density engine?

The YC6K combines a compact inline-6 design with approximately 12.16–12.94 litres of displacement and up to 400 kW prime power. This provides a high power output relative to the engine’s size and weight.

Is the YC6K available in 60Hz?

The published specification lists a rated speed of 1500 r/min, corresponding to a 50Hz configuration. Contact Arrowad Trading to confirm whether a suitable 60Hz sub-model is currently available.

What emission standard does the YC6K meet?

The YC6K meets Non-Road National III (T3) emission standards.

What’s the fuel consumption of the YC6K?

The YC6K has a rated fuel consumption of ≤200 g/kWh.

Where can I source genuine YC6K parts?

Arrowad International Trading stocks genuine YC6K engines and spare parts in Dubai, with delivery available across the UAE and GCC. Contact Arrowad to confirm availability and parts requirements.
