YC16VTD

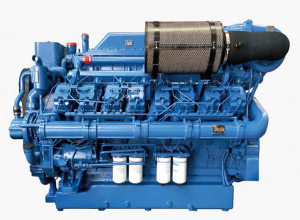

16VTD G-drive diesel engine

① T3 Emission standard.
② Liebherr common rail fuel injection system

Series

Prime (kW)

Standby (kW)

Rated speed (r/min)

Type

Cylinders -bore x stroke(mm)

Displacement (L)

Aspiration

Fuel system

Speed adjustment

Fuel consumption g/(kW·h)

Emission standard

Dimension (L x W x H) mm

Net weight (kg)

Application genset

YC16VTD

1520-1805

1672-1985

1500/1800

V type、4-stroke, 4-valve

16-152×180

52.26

Turbocharged & Intercooled

ECR

ECU

≤205

Non-road T3

2800×1700×1950

5600

Prime: 1350-1600kW
Standby: 1500-1760kW

50HZ

YC16VTD2270-D30

YC16VTD2510-D30

YC16VTD2700-D30

60HZ

YC16VTD2270-D32

YC16VTD2510-D32

YC16VTD2700-D32

Yuchai YC16VTD Diesel Engine – 1350–1805 kW

Yuchai YC16VTD G-Drive diesel engine for generator-set applications. Prime power
1520–1805 kW, standby power 1672–1985 kW, with a rated speed of
1500/1800 rpm.


Request YC16VTD Quote

Yuchai YC16VTD Diesel Engine Overview

The YC16VTD is Arrowad’s larger G-Drive diesel engine, built for high-output generator sets.
It is a V-type, 4-stroke, 4-valve engine with 16 cylinders and
52.26 litres of displacement, rated at 1520–1805 kW prime power and
1672–1985 kW standby power, running at 1500 or 1800 rpm.

The engine is turbocharged and intercooled, with an ECR fuel system and ECU speed control.
The YC16VTD specification also identifies a Non-road T3 emission standard and a
Liebherr common rail fuel injection system.

Arrowad supplies the YC16VTD from its Jebel Ali Free Zone base in Dubai, alongside the
wider Yuchai G-Drive range, custom-built generators, alternators, genuine spare parts and generator
accessories.

Key Specifications at a Glance

Specification YC16VTD Details
Model YC16VTD
Engine Type V-type, 4-stroke, 4-valve
Cylinders 16
Bore × Stroke 152 × 180 mm
Displacement 52.26 L
Prime Power 1520–1805 kW
Standby Power 1672–1985 kW
Rated Speed 1500 / 1800 rpm
Aspiration Turbocharged & intercooled
Fuel System ECR
Fuel Injection Liebherr common rail fuel injection system
Speed Control ECU
Fuel Consumption ≤205 g/kWh
Emissions Non-road T3
Dimensions (L × W × H) 2800 × 1700 × 1950 mm
Dry Weight 5,600 kg

Engine Output vs. Genset Rating — Don’t Mix These Up

The 1520–1805 kW prime and 1672–1985 kW standby figures describe the
engine’s own rating. The complete generator set built around the engine can have a different rating because
the alternator, control system and overall genset configuration determine the final generator-set output.

For the configuration described above, the complete generator set is listed at approximately
1350–1600 kW prime and 1500–1760 kW standby.

If you are sizing a project, send Arrowad your required output and application so the appropriate
YC16VTD configuration can be confirmed.


Check the Right YC16VTD Configuration

50Hz and 60Hz YC16VTD Builds

The YC16VTD is available in separate 50Hz and 60Hz catalogue variants. Choose the
configuration that matches your site’s grid frequency and project requirements.

50Hz Models

60Hz Models

Each model has its own datasheet with exact ratings and configuration details. Review the applicable
datasheet before finalising an engine or generator-set specification.

Built and Supplied from Dubai

Arrowad operates its Yuchai engine and generator business from
Jebel Ali Free Zone, Dubai, serving customers across the UAE and export markets.
In addition to the YC16VTD, Arrowad handles custom diesel generators, alternators, genuine spare parts
and generator accessories.

This allows customers to discuss the engine, alternator, generator configuration and associated
components through a single enquiry.

Explore the full Yuchai engine range:

Yuchai G-Drive Engine Categories

If You Need the Complete Generator, Not Just the Engine

Arrowad also builds and tests

custom diesel generators

at its Jebel Ali facility. Engines such as the YC16VTD can be paired with the appropriate alternator,
control system and enclosure according to the project’s requirements.

Related Products:

Frequently Asked Questions About the Yuchai YC16VTD

What is the Yuchai YC16VTD?

The Yuchai YC16VTD is a high-output G-Drive diesel engine designed for generator-set applications.
It is a V-type, 4-stroke, 4-valve engine with 16 cylinders and 52.26 litres of displacement.

What power does the YC16VTD produce?

The listed engine configuration provides 1520–1805 kW prime power and
1672–1985 kW standby power at 1500 or 1800 rpm.

How many cylinders does the YC16VTD have?

The YC16VTD has 16 cylinders with a bore and stroke of
152 × 180 mm.

What is the displacement of the YC16VTD?

The engine has a total displacement of 52.26 litres.

Is the YC16VTD turbocharged?

Yes. The YC16VTD uses a turbocharged and intercooled air-intake system.

What fuel system does the YC16VTD use?

The engine uses an ECR fuel system with ECU-controlled speed and a
Liebherr common rail fuel injection system.

What is the YC16VTD fuel consumption?

The listed fuel consumption is ≤205 g/kWh. Actual fuel consumption can vary
according to load, operating conditions, engine configuration and application.

What emissions standard does the YC16VTD meet?

The listed specification identifies the YC16VTD as meeting the
Non-road T3 emissions standard.

Why do engine power and genset power figures differ?

Engine output and complete generator-set output are separate specifications. A genset combines
the diesel engine with an alternator, control system and other components, so the final set rating
depends on the complete configuration and operating conditions.

Does the YC16VTD come in 50Hz and 60Hz versions?

Yes. The YC16VTD range includes separate 50Hz and 60Hz model variants.
Confirm the exact model and rating from the relevant datasheet before specifying the engine
for a project.

How do I get a quote for a YC16VTD engine or generator?

Send Arrowad your required power, prime or standby requirement, frequency, quantity and
project location. Arrowad can then confirm the appropriate YC16VTD configuration and
associated generator-set requirements.

Request a YC16VTD Quote

Tell Arrowad what you need so the correct Yuchai YC16VTD engine or generator
configuration can be checked for your project.

  • Power Required: kW
  • Power Rating: Prime or Standby
  • Frequency: 50Hz or 60Hz
  • Quantity: Number of engines or generator sets
  • Project Location: Country and city
