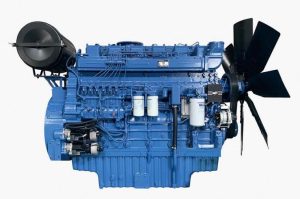

YC6TH
6TH G-drive diesel engine
① Electronic controlled unit pump system.
② High power density and compact structure.
③ Meet Non-road National Ⅲ standard.
Series
Prime (kW)
Standby (kW)
Rated speed (r/min)
Type
Cylinders -bore x stroke(mm)
Displacement (L)
Aspiration
Fuel system
Speed adjustment
Fuel consumption g/(kW·h)
Emission standard
Dimension (L x W x H) mm
Net weight (kg)
Application genset
YC6TH
715-900
787-990
1500/1800
In line、4-stroke, 4-valve
6-175×195
28.14
Turbocharged & Intercooled
EUP
ECU
≤195
Non-road T3
2883×2000×1927(with radiator)
3200(without radiator)
Prime: 600-800kW
Standby: 660-880kW
