YC6TD

6TD G-drive diesel engine
① Electronic controlled high pressure common rail system and electronic controlled unit pump system.
② High power density and compact structure.
③ Meet Non-road National Ⅲ standard.
Series
Prime (kW)
Standby (kW)
Rated speed (r/min)
Type
Cylinders -bore x stroke(mm)
Displacement (L)
Aspiration
Fuel system
Speed adjustment
Fuel consumption g/(kW·h)
Emission standard
Dimension (L x W x H) mm
Net weight (kg)
Application genset
YC6TD
450–600
520–660
1500/1800
In line、4-stroke, 4-valve
6-152×180
19.6
Turbocharged & Intercooled
ECR/EUP
ECU
≤195
Non-road T3
2445×1828×1827 mm
1900 kg
Prime: 450–600 kW
Standby: 520–660 kW
50hz
YC6TD780-D31
YC6TD840-D31
YC6TD900-D31
YC6TD1000-D30

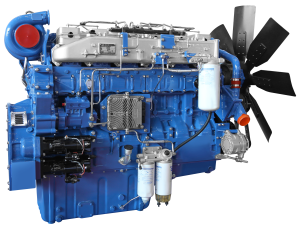

Yuchai YC6TD Diesel Generator Engine (450–660 kW)
The Yuchai YC6TD is a turbocharged and intercooled inline-6 diesel engine built for high-output generator sets, rated from 450 to 600 kW prime power and 520 to 660 kW standby power at 1500/1800 rpm. It combines an electronically controlled high-pressure common rail system with an electronic unit pump (ECR/EUP) fuel platform and electronic governance for precise speed regulation under changing loads. The engine meets Non-road National III (T3) emission standards.
Why Choose the Yuchai YC6TD?
Yuchai designed the YC6TD around high power output, precise fuel control, and dependable operation for demanding generator applications. Its electronically controlled high-pressure fuel system combines ECR/EUP technology with electronic engine control to provide accurate fuel delivery and responsive speed regulation.
The engine’s turbocharged and intercooled design supports efficient air management and high power density, while its inline-6 configuration provides a compact solution for generator sets in the 450–660 kW class.
For operators running extended prime-power duty cycles, the YC6TD is designed to maintain stable performance under sustained loads. Its combination of electronic fuel control, turbocharging, intercooling, and robust construction makes it suitable for demanding commercial and industrial power-generation applications.
Applications
The Yuchai YC6TD is suitable for a wide range of high-output generator applications, including:
- Industrial facilities requiring reliable continuous or prime power
- Large commercial buildings and commercial developments
- Rental power fleets requiring high-output generator engines
- Hospitals and healthcare facilities requiring dependable standby power
- Data centres requiring reliable backup power infrastructure
- Construction and infrastructure projects requiring temporary power
- Large-scale generator sets for commercial and industrial applications
Yuchai YC6TD Specifications
| Specification | YC6TD |
|---|---|
| Prime Power | 450–600 kW |
| Standby Power | 520–660 kW |
| Rated Speed | 1500/1800 r/min |
| Engine Type | Inline, 4-stroke, 4-valve |
| Cylinders – Bore × Stroke | 6 – 152 × 180 mm |
| Displacement | 19.6 L |
| Aspiration | Turbocharged & Intercooled |
| Fuel System | ECR/EUP |
| Speed Adjustment | ECU |
| Fuel Consumption | ≤195 g/(kW·h) |
| Emission Standard | Non-road T3 / National III |
| Dimensions (L × W × H) | 2445 × 1828 × 1827 mm |
| Net Weight | 1900 kg |
| Application Genset – Prime | 450–600 kW |
| Application Genset – Standby | 520–660 kW |
50Hz vs 60Hz Configurations
The Yuchai YC6TD is available in configurations designed for both 50Hz and 60Hz generator applications. The engine can operate at 1500 rpm for 50Hz applications and 1800 rpm for 60Hz applications, depending on the specific engine and generator-set configuration.
This makes the YC6TD suitable for generator projects across the Middle East, Africa, and other international export markets where different electrical frequencies are required. Always confirm the required frequency, engine sub-model, generator configuration, and application rating with Arrowad before ordering.
Arrowad YC6TD Supply & Support in Dubai
Arrowad Trading supplies Yuchai generator engines and genuine spare parts from its facility in Jebel Ali Free Zone, Dubai. Local availability can help reduce lead times compared with sourcing individual components directly from overseas suppliers.
Arrowad can support customers with YC6TD engine supply, genuine spare parts, technical assistance, and generator-related requirements for projects across the UAE and GCC region.
For availability, specifications, spare parts, or a complete generator-set requirement, contact the Arrowad team with your required power rating, frequency, application, and delivery location.
Frequently Asked Questions About the Yuchai YC6TD
What does “TD” mean in YC6TD?
The YC6TD refers to a Yuchai inline-6 diesel engine configuration featuring turbocharging and intercooling. The engine also uses an ECR/EUP electronically controlled fuel system designed for precise fuel delivery and engine control.
Is the YC6TD suitable for continuous or prime power?
Yes. The YC6TD is available for generator applications with 450–600 kW prime power ratings, making it suitable for demanding commercial and industrial prime-power applications when correctly configured and operated according to the manufacturer’s specifications.
What is the standby power rating of the YC6TD?
The YC6TD is listed with 520–660 kW standby power for applicable generator-set configurations. The exact rating can vary by engine model, frequency, and generator-set configuration, so confirm the specific model before purchase.
What fuel system does the YC6TD use?
The YC6TD uses an ECR/EUP fuel system, combining electronically controlled high-pressure fuel delivery technologies with electronic engine control for accurate fuel management and responsive operation.
What is the fuel consumption of the YC6TD?
The listed fuel consumption for the YC6TD is ≤195 g/kWh. Actual fuel consumption can vary depending on load, operating conditions, engine configuration, ambient conditions, and generator-set setup.
What emission standard does the YC6TD meet?
The YC6TD is listed as meeting Non-road National III (T3) emission requirements. Emission compliance should always be confirmed against the exact engine model and destination-market requirements before installation or import.
What is the displacement of the Yuchai YC6TD?
The YC6TD has a listed engine displacement of 19.6 litres, with a six-cylinder inline configuration and a 152 × 180 mm bore and stroke.
Can Arrowad supply YC6TD parts and technical support in the UAE?
Yes. Arrowad Trading supplies Yuchai engines and genuine spare parts from its Jebel Ali Free Zone facility in Dubai, with support for customers in the UAE and GCC. Contact Arrowad to confirm current availability, compatible parts, and technical requirements for your YC6TD engine.
Need a Yuchai YC6TD Engine or Generator Set?
If you are sourcing a 450–660 kW Yuchai-powered generator for an industrial, commercial, rental, data-centre, healthcare, or standby-power project, Arrowad can help you identify the appropriate engine and generator configuration.
Contact Arrowad Trading for YC6TD availability, genuine spare parts, technical support, and deisel generator-set requirements in Dubai, the UAE, and across the GCC.
