YC12VC

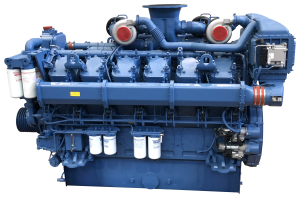

12VC G-drive diesel engine
① Modular design of VC platform.
② High efficiency four turbocharger, fast response speed.
③ Electronic controlled unit pump system.
④ Meet Non-road National Ⅲ standard.
Series
Prime (kW)
Standby (kW)
Rated speed (r/min)
Type
Cylinders -bore x stroke(mm)
Displacement (L)
Aspiration
Fuel system
Speed adjustment
Fuel consumption g/(kW·h)
Emission standard
Dimension (L x W x H) mm
Net weight (kg)
Application genset
YC12VC
1120-1805
1230-1985
1500
V type、4-stroke, 4-valve
12-200×210
79.17
Turbocharged & Intercooled
EUP/ECR
ECU
≤198
Non-road T3
2943×1644×2204
8380
Prime: 1000-1700kW
Standby: 1100-1800kW
